1. DESCRIPTION
Goodcrete Deep Penetrating Sealer(DPS) is an inorganic liquid crystalline waterproofing, it’s
colorless, odorless, environment friendly, nonflamm-
able and easy to use. The inner alkali content of

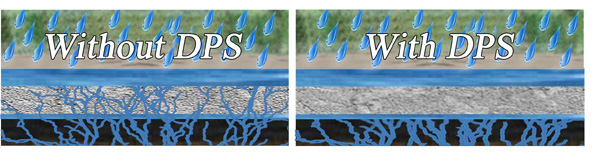

concrete is 360times more than the surface’s, through the pores, DPS penetrates
into the concrete structures, chemically reacts with the free alkali presented
in the concrete and forms silicate gel,which seals the pores and micro cracks,
blocks water and harmful substances’ ingress; when water losses, silicate gel
shrinks into active crystals and becomes the integral part of the concrete,
permanent blocks concrete structure, increases concrete density and strength, thus,
gives the concrete structures all-sided and permanent protection, such as, waterproofing/damp
roofing/anti-seepage/anti-stain/anti-corrosion/anti-aging, etc., so, DPS is not
only a kind of waterproofing, but also a concrete protective solution.
2. TECHNICAL DATA
Shape
|
Liquid
|
Color
|
Colorless
|
Odor
|
Odorless
|
Organic or Inorganic
|
Inorganic
|
Specific Gravity,
|
≥1.09 g/cm3
|
Freezing Point
|
-2℃
|
Boiling Point
|
110℃
|
PH
|
11
|
Flammability
|
Non flammable
|
VOC
|
No
|
Environment
Hazard
|
Environment Friendly
|
|
2-4h
|
3. ADVANTAGES
v
Environment friendly;
v
Permanent Waterproofing, damp-proofing, anti-
seepage;
v
Protecting the reinforced concrete against the corrosion
of acid, alkali and chloride ion;
v
Excellent resistance to hydrostatic pressure;
v
Improving concrete structures’ resistance of high
temperature and freeze/thaw cycle damage;
v
Self sealing ≤0.3mm hairline cracks repeatedly;
v
Restraining the growth of moss and mold;
v
Extending the life time of the concrete
structures and its finishing coating;
v
Easy, fast and safe to use, can up to 1500 -2000 m2/man
per day;
v
Can greatly reduce the cost of labor, repair and
maintenance;
v
Can
be applied on both old concrete and new concrete, and don’t change the concrete’s
color and structure;
v
Inorganic
products, permanent functions.
4. PERFORMANCE DATA
Test Standard
|
Test Result
|
ASTM C-642
|
Reduces water absorption up to 98%
|
NCHRP 244
|
Absorbed chloride: <6%
|
ASTM-C-67 Section 29
|
High resistance to efflorescence
|
ASTM C 39
|
35% increase in compressive strength
|
ASTM C 779
|
35 % increase in surface hardness,
>200% increase in wear resistance
|
ASTM G23-81
|
Resistance to sunlight (UV) and water
spray – Excellent
|
ASTM-C-156
|
Significant improvement in curing against
hairline cracking and spot drying.
|
ASTM D 3359
|
20% increase in epoxy adhesion
|
Bacterial Growth
|
Discourage
|
Resistance to Alkalinity
|
Excellent
|
Surface Appearance
|
No color or texture change. No gloss.
|
Paint Adhesion
|
Treated surfaces are compatible with any
type of covering
|
5. APPLICABLE PLACES
Almost can be used for all concrete constructions
that need waterproofing, moisture proofing, anti-seepage, whatever new or old, below
and above ground, indoors and outdoors.
But, strongly recommended for the infrastructure,
industrial and commercial buildings, such as,
Subways, Civil Air Defense, Bridges, Decks, Dams,
Tunnels, Reservoirs, Underground Passages, Plants, Warehouses, etc.
6. SURFACE PREPARATION
Freshly Finished Concrete
No treatment need, but application need after at
least 7days of the concrete casting.
Existing Concrete
1. Cracks >0.3mm, should be repaired.
2. To sweep, scrub, or strip the concrete to
remove any surface contamination or film, ensure DPS can efficiently penetrate into
the surface.
7. DIRECTION OF USING
1. Shake
well before use, do not dilute, do not mix.
2. Apply
with low/medium-pressure sprayer, brush or roller to spray/brush/roll directly
and evenly on the clean concrete surface, air temperature at 4-35℃, and relative humidity 10-90% is the best.
3. When
the surface become semi-dry after the first time spraying, proceed the second
spraying.
4. Wash the sprayers etc tools with water after the
construction completing.
Generally, the penetrating time of DPS is 1-3h,
3h or surface becomes dry after construction, the floor can walk, and after
7days can be backfilled or started following works.
Note: When rain and strong wind, can’t construct
in the open air, and avoid the surface suffer from water and rain within 24h
after construction.
Coverage
Approximately 150-200square feet/gallon, or 3-5m2/kg(2 times
spraying).
Please Note: Variations in
concrete quality, porosity, job site conditions, temperature and relative
humidity
will affect coverage rates and drying times.
8.
LIMITATIONS
A. Not suitable for lightweight blocks, porous masonry etc similar products.
B. Surfaces previously treated with curing or sealing agents, unless these coatings have completely worn off or have been removed by chemical or mechanical means.
C. Don’t use DPS to seal cracks, joints or gaps.
9.
STORAGE AND LIFE
1. Store in cool place, do not mix with other chemicals;
2. Keep this product out of the reach of children;
3. Shelf life is 10 years in the original sealed condition.
10.
FIRST AID
In case of any chemical
emergency related to our products; spill, leak, fire or accident, please take
emergency measures ASAP according to following aid information.
Ingestion:
Drink large quantities
of water or milk. DO NOT induce
vomiting. Seek medical attention immediately.
Eye Contact:
Remove contact lenses.
Immediately flush eyes for 15 minutes in clear
running water while holding eyelids open.
Seek medical
attention immediately.
Skin Contact:
Wash contacted area
with soap and water. DO NOT attempt to
neutralize with chemical agents. If irritation persists, seek medical
attention.
Inhalation:
Remove affected person
to fresh air. Wash mouth and
nasal passages with water
repeatedly. If breathing difficulties persist, seek medical attention.
11.
CUSTOMER SERVICE
For additional product
and application information, please visit our website: www.goodcrete.com, or contact at linda@goodcrete.com
|
